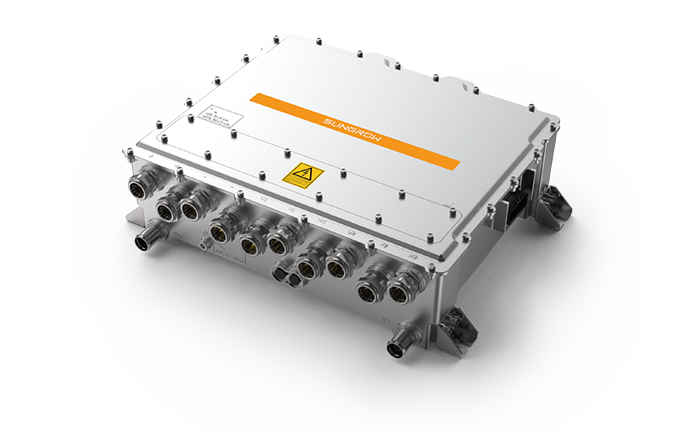

EC53 Motor controller
Suitable for coaches, heavy-duty trucks and engineering machinery
-
Single/Dual Motor controller
-
Supports Power Expansion
-
Comply with Functional Safety Standards
Technical Parameters
Single controller
-
Code No.
-
Peak Capacity
Dual controller
-
Code No.
-
Peak Capacity
System Parameter
-
Voltage Range
-
Ambient Temperature
-
Maximum Efficiency
-
EMC
-
Ingress Protection Rating
-
-
EC531
-
375kVA
-
EC534
-
210kVA*2
-
400~750V
-
-40~85℃
-
98.5%
-
CISPR25-2016 Class 3
-
IP68
-
-
-
EC532
-
474kVA
-
EC535
-
271kVA*2
-
400~750V
-
-40~85C
-
98.5%
-
CISPR25-2016 Class 3
-
IP68*
-
-
-
EC533
-
559kVA
-
EC536
-
362kVA*2
-
400~750V
-
-40~85C
-
98.5%
-
CISPR25-2016 Class 3
-
IP68
-
Engineering Machinery Solutions
Adaptable to Multiple Scenarios, High Reliability, High Efficiency
Case
-
XCMG Truck
Application Product: EC53
2022
-
SINOTRUK • HOVA Tractor Truck
Application Product: EC53
2022
-
SINOTRUK • HOWO Mining Truck
Application Product: EC53
2022
